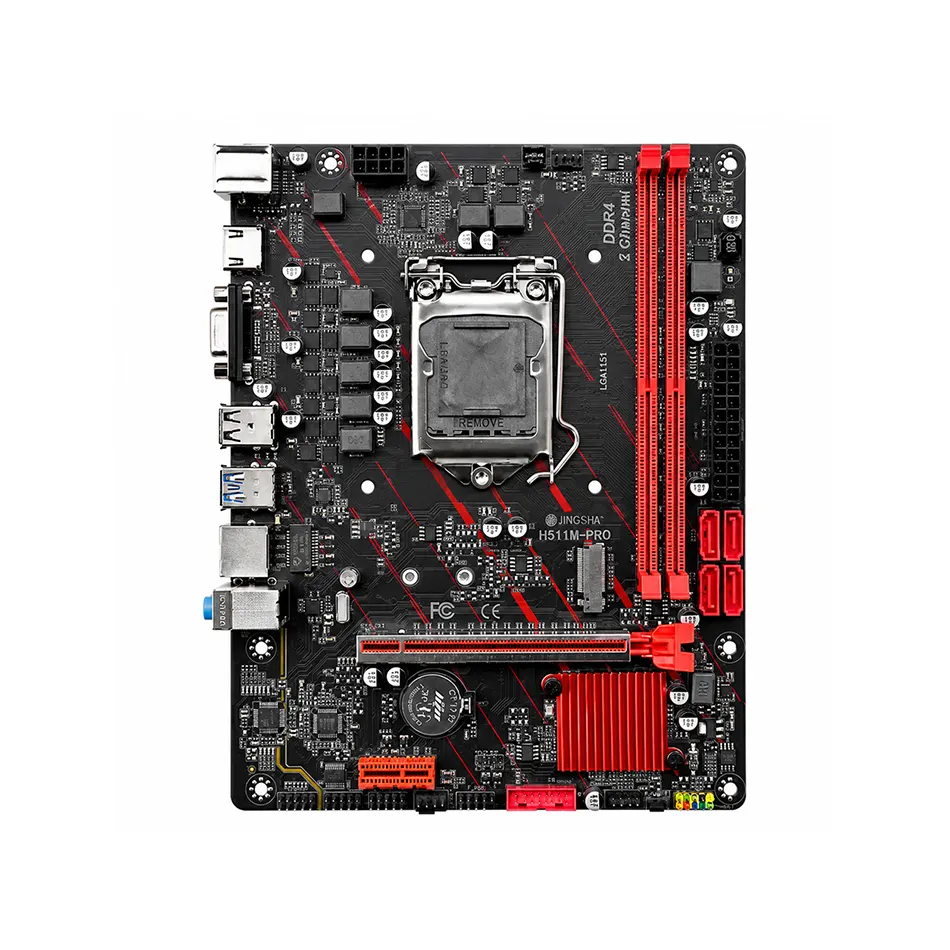

Trendsonic TS-H511M-PRO DDR4 Intel 10th to 11th Gen M-ATX Motherboard

Name: Trendsonic TS-H511M-PRO DDR4 Intel 10th to 11th Gen M-ATX Motherboard
Brand: Trendsonic - Computer Hardware and Display Solutions
SKU: 47
Availability: InStock

Reliable and versatile Micro-ATX motherboard powered by Intel H470 chipset, supporting 10th & 11th Gen Intel Core processors with NVMe M.2 high-speed storage and dual-channel DDR4...

Trendsonic TS-H511M-PRO DDR4 Intel 10th to 11th Gen M-ATX Motherboard

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

The Trendsonic TS-H511M-PRO is a compact, cost-effective Micro-ATX motherboard designed for Intel LGA1200 10th and 11th Generation Core processors. Equipped with the robust Intel H470 chipset, dual-channel DDR4 memory support (up to 32GB), an ultra-fast NVMe M.2 slot, and 6 SATA 3.0 ports, it provides stable performance, flexible expandability, and seamless connectivity with HDMI, VGA, USB 3.0, and Gigabit LAN for everyday computing and office setups.

Key Highlights:

Next-Gen CPU Support: Compatible with Intel 10th and 11th Gen Core processors via the LGA1200 socket.
High-Speed Memory & Expansion: Features 2x DDR4 DIMM slots supporting dual-channel memory up to 32GB (2133/2400MHz), plus a PCIe 3.0 x16 slot for dedicated graphics and a PCIe 3.0 x1 slot for add-on cards.
Robust Storage Capabilities: Includes 1x high-speed M.2 NVMe slot for rapid OS booting and 6x SATA 3.0 (6Gb/s) ports for massive storage capacity.
Crystal Clear Audio & Networking: Onboard Realtek 6-channel HD Audio codec delivers immersive sound, while Realtek 100/1000 Mbps Gigabit LAN ensures stable, lag-free network connectivity.
Versatile Dual Display: Equipped with HDMI and VGA display outputs to support standard multi-monitor office and multimedia workflows.

Specification

Parameter	Details Specification
Model Name	Trendsonic TS-H511M-PRO (H511M-PRO)
Platform / Socket	Intel Socket LGA1200
Chipset	Intel H470 Chipset
CPU Support	Supports Intel LGA1200 10th & 11th Generation Processors
Bus Clock / FSB	2133 / 2400 MHz
Memory Architecture	Dual Channel DDR4
Memory Slots & Capacity	2 x DDR4 DIMM Slots (Up to 32GB maximum capacity)
Memory Frequency	DDR4 2133 / 2400 MHz
Onboard Graphics	Integrated Graphics Processor (CPU dependent) • 1 x HDMI Port • 1 x VGA Port
Expansion Slots	• 1 x PCI Express 3.0 x16 Slot • 1 x PCI Express 3.0 x1 Slot
Storage Interfaces	• 1 x M.2 Slot (Supports NVMe SSD) • 6 x SATA 3.0 (6Gb/s) Ports
Audio	Realtek ALC 6-Channel HD Audio Codec onboard • Front audio & stereo mic interface support • 3 x 3.5mm HD Audio Jacks (Line-In / Line-Out / Mic)
LAN / Network	Realtek 100/1000 Mbps (Gigabit) Ethernet Controller
Rear Panel I/O Ports	• 1 x HDMI Port • 1 x VGA Port • 2 x USB 3.0 Ports • 4 x USB 2.0 Ports • 1 x RJ-45 LAN Port (Gigabit) • 3 x HD Audio Jacks
Internal Headers & Connectors	• 1 x 24-pin ATX Main Power Connector • 1 x 8-pin ATX 12V CPU Power Connector • 1 x Front Audio Connector (F-AUDIO) • 2 x USB Headers (Supports 1x Front USB 3.0 & 1x Front USB 2.0) • 1 x Front Panel Connector (F-PANEL) • 1 x Speaker Header (F-SPEAKER) • 3 x Fan Connectors (CPU / System Fans)
Form Factor & Dimensions	Micro-ATX Form Factor (17.0 cm x 21.5 cm)
Warranty	3 Years

Additional Information

Name	Trendsonic TS-H511M-PRO DDR4 Intel 10th to 11th Gen M-ATX Motherboard
Categories	MOTHERBOARD
Summary	Reliable and versatile Micro-ATX motherboard powered by Intel H470 chipset, supporting 10th & 11th Gen Intel Core processors with NVMe M.2 high-speed storage and dual-channel DDR4 memory.
Tags	DDR4 Motherboard, Trendsonic Motherboard, TS-H511M-PRO
